PSM900

440 USD

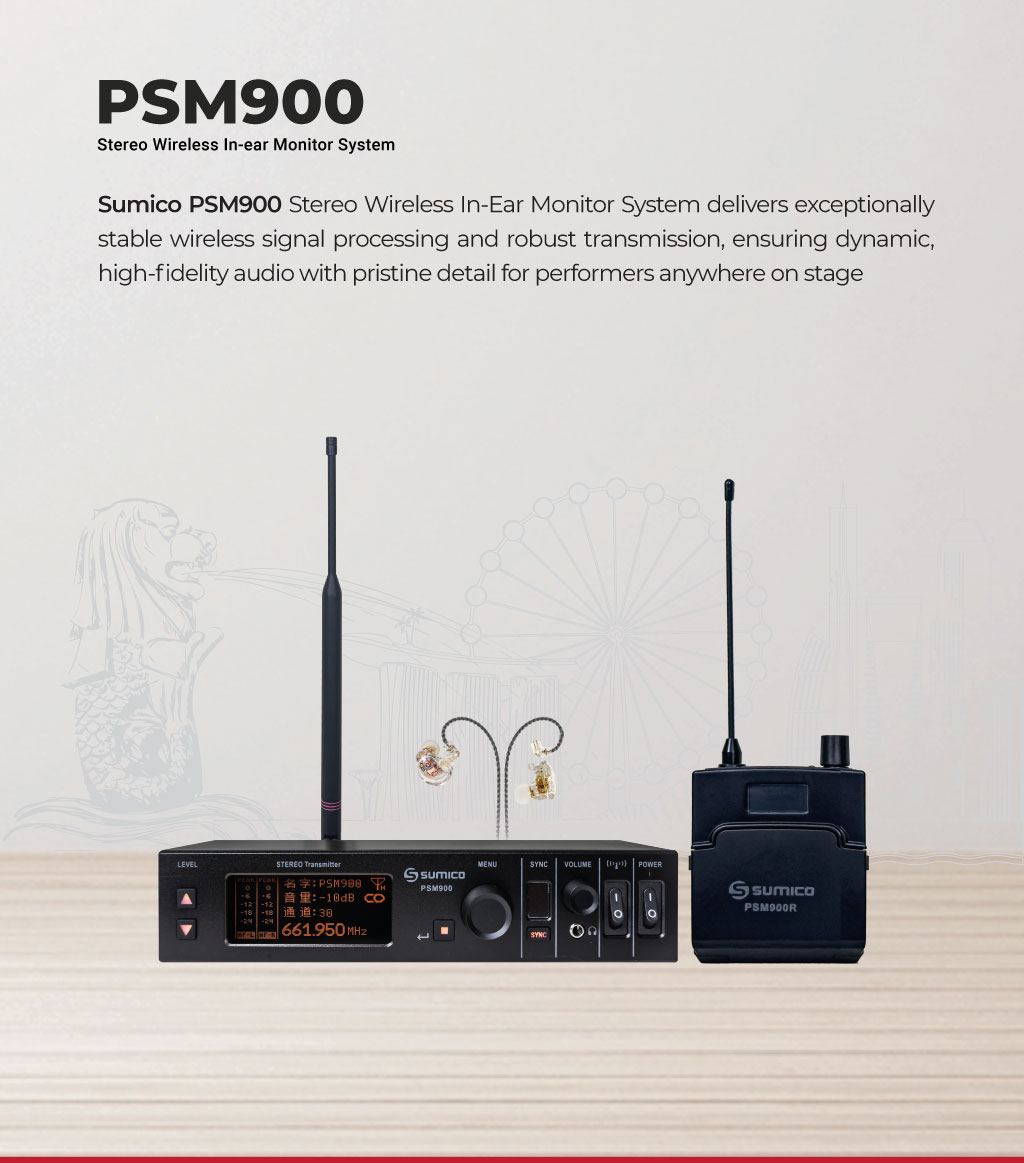

Sumico PSM900 Stereo Wireless In-Ear Monitor System delivers exceptionally stable wireless signal processing and robust transmission, ensuring dynamic, high-fidelity audio with pristine detail for performers anywhere on stage

Description

Sumico PSM900 is a high-performance Stereo Wireless In-ear Monitor System engineered to provide vocalists, musicians, and audio professionals with pristine, crystal-clear monitoring and exceptionally stable signal transmission. Featuring an advanced UHF architecture, it delivers reliable RF performance, making it the ultimate professional solution for live stages, touring bands, broadcasting, and professional studio livestreaming setups. Designed for seamless plug-and-play operation, it ensures high-fidelity personal monitoring with absolute freedom of movement on stage.

The Sumico PSM900 is the ultimate personal audio monitoring solution designed for exceptional sonic accuracy and wireless flexibility across a wide range of professional applications. Built with heavy-duty, tour-ready components, the transmitter housing and beltpack receiver offer excellent shielding against external wireless interference while maintaining a sleek, rugged profile.

Whether deployed for intense live touring performances or high-definition studio broadcasting, the PSM900 provides precise frequency control and detailed audio reproduction. It is highly versatile and perfectly suited for:

Live Stages & Concerts: Helping lead vocalists and stage musicians track their real-time performance accurately without stage acoustic feedback.
Touring Bands: Perfect for multi-instrumentalists, drummers, and guitarists requiring independent, high-fidelity stereo mixes.
Livestreaming & Broadcasting: Providing podcasters, streamers, and broadcast engineers with real-time, low-latency audio monitoring.

Benefits

Key Features:

Pristine Stereo Wireless Audio: Delivers full-range, high-resolution audio processing with an wide soundstage, giving performers a true stereo listening experience.
Ultra-Stable UHF Transmission: Built with an advanced wireless RF module that prevents dropouts and multi-path interference even in crowded wireless environments.

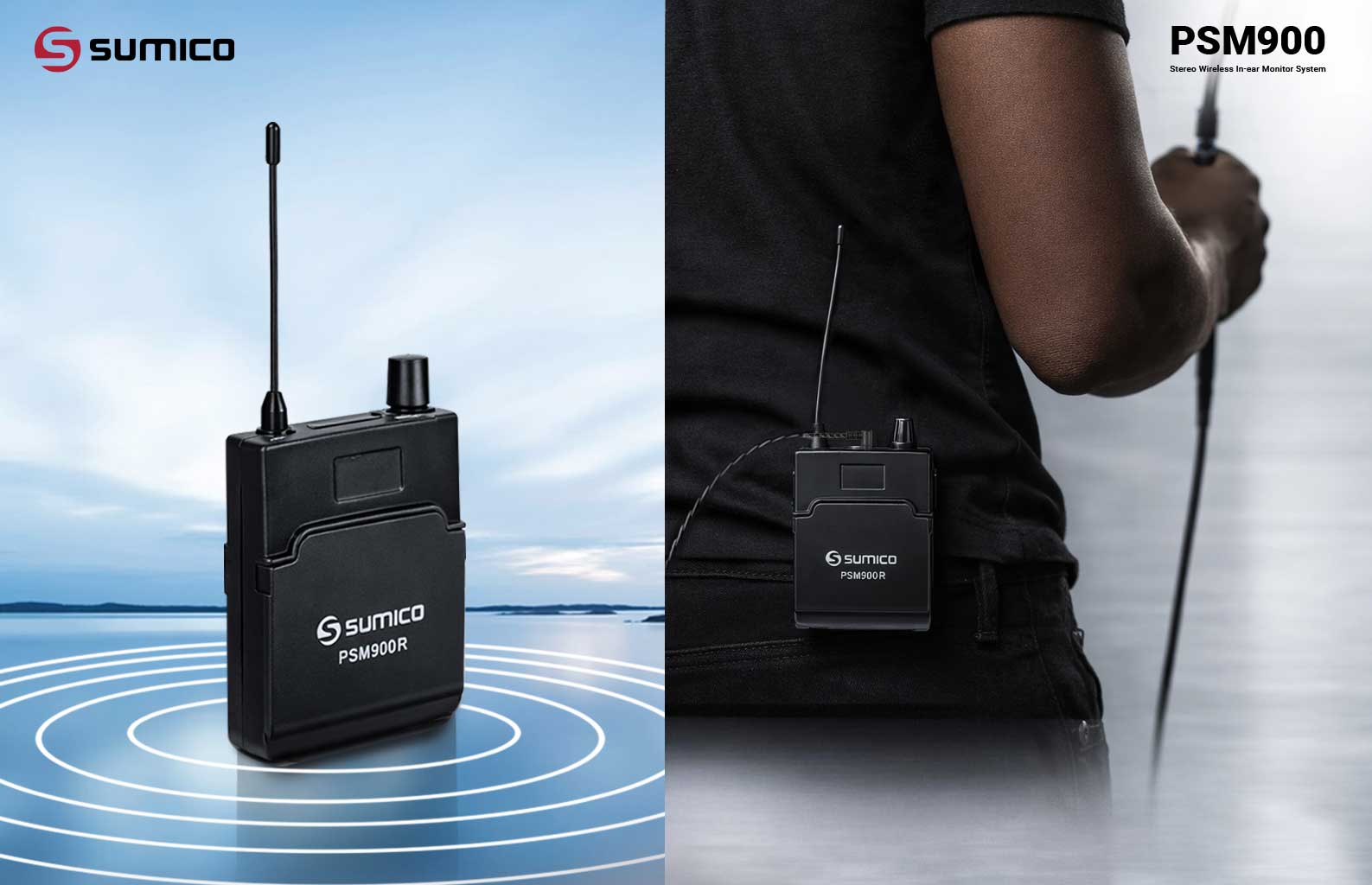

Intuitive & Rugged Bodypack: Features a compact, lightweight bodypack receiver with a clear backlit LCD screen for easy configuration of frequency channels and battery monitoring.

Specifications

PSM900 STEREO WIRELESS TRANSMITTER
RF Frequency Range	640MHz ~ 662MHz
Oscillation Mode	PLL Synthesized
RF Output Power	13.5dBm (22.4mW)
Carrier Frequency Error	0.005%
Harmonic Radiation	-32dBm
Modulation Method	FSK (Frequency Shift Keying)
Nominal/Max Deviation	± 65kHz
Input	2 x Combo XLR/6.3mm
Input Impedance	2.2 kΩ
Input Gain Adjustment	36 levels, 1dB steps / 36
Output	1 x 3.5mm (Headphone), 1 x Loop Out (L/R) 6.3mm
Power Supply	DC 12V
Dimensions (HxWxD)	48 x 12.8 x 85 mm
Weight	526g

SYSTEM SPECIFICATIONS
RF Frequency Range	640MHz ~ 662MHz
Frequency Stability	0.005%
Operating Range	≥ 60m (Ideal conditions)
Audio Companding	Digital DSP-based Companding
Audio Sampling Rate	48kHz
Frequency Response	50Hz ~ 18kHz (±3dB)
Dynamic Range	92dB
S/N Ratio (A-Weighted)	105dB
T.H.D	≤ 0.8% (@1kHz)
Operating Temperature	-10°C ~ +50°C

PSM900R STEREO WIRELESS BODYPACK RECEIVER
RF Frequency Range	640MHz ~ 662MHz
Receiving Technology	Superheterodyne
Spurious Rejection	45dB
RF Sensitivity	S/N ≥ 45dB (at 10dBu input)
Audio EQ/Processing	Integrated presets
Headphone Output Power	80mW/channel (16Ω)
Output Level Adjustment	30 levels, 1dB steps
Power Requirement	2 x AA 1.5V batteries
Battery Life	≥ 6 hours
Dimensions (HxWxD)	77.5 x 63 x 19.5 mm
Weight	66.8g (Excluding batteries)
