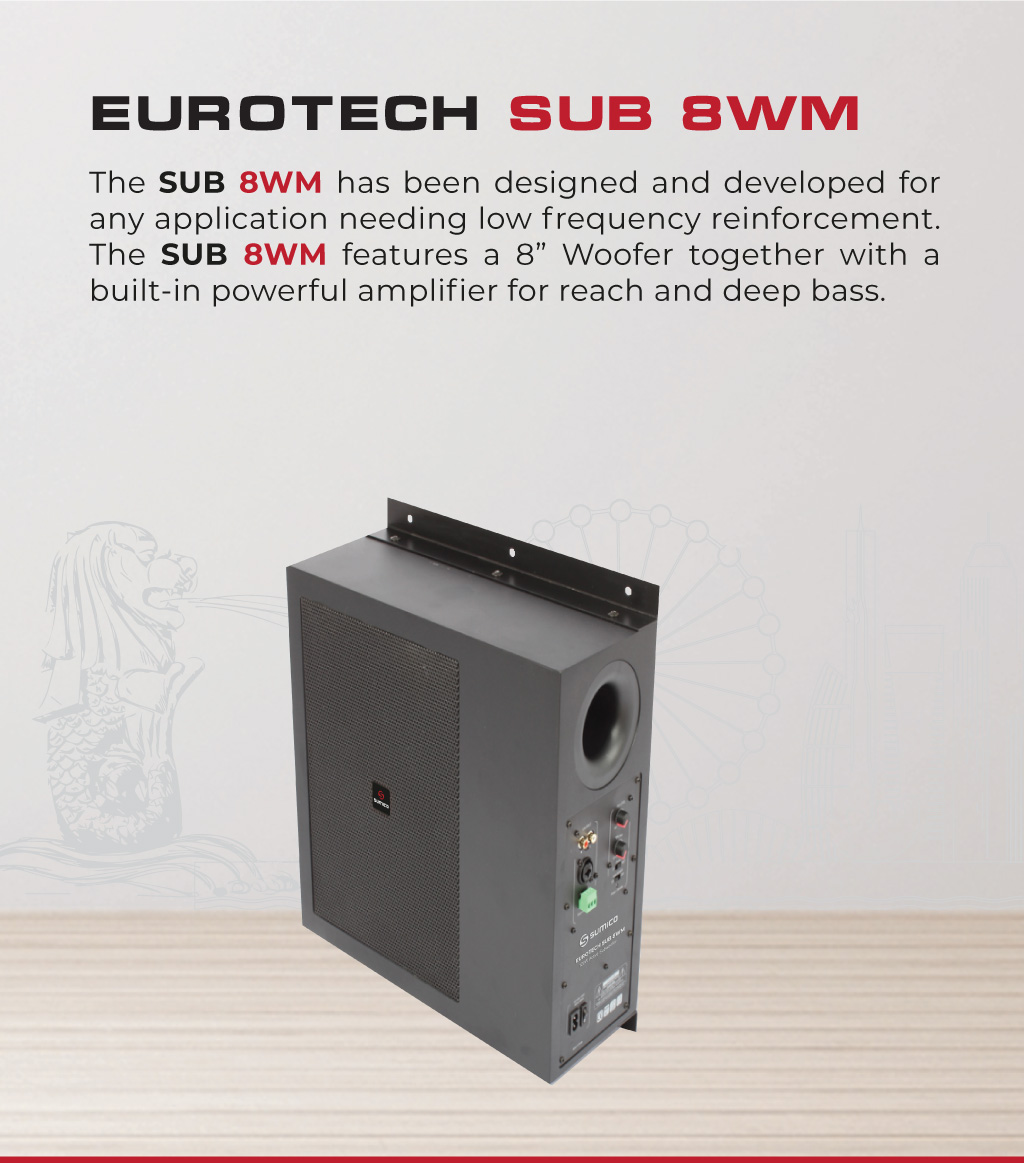

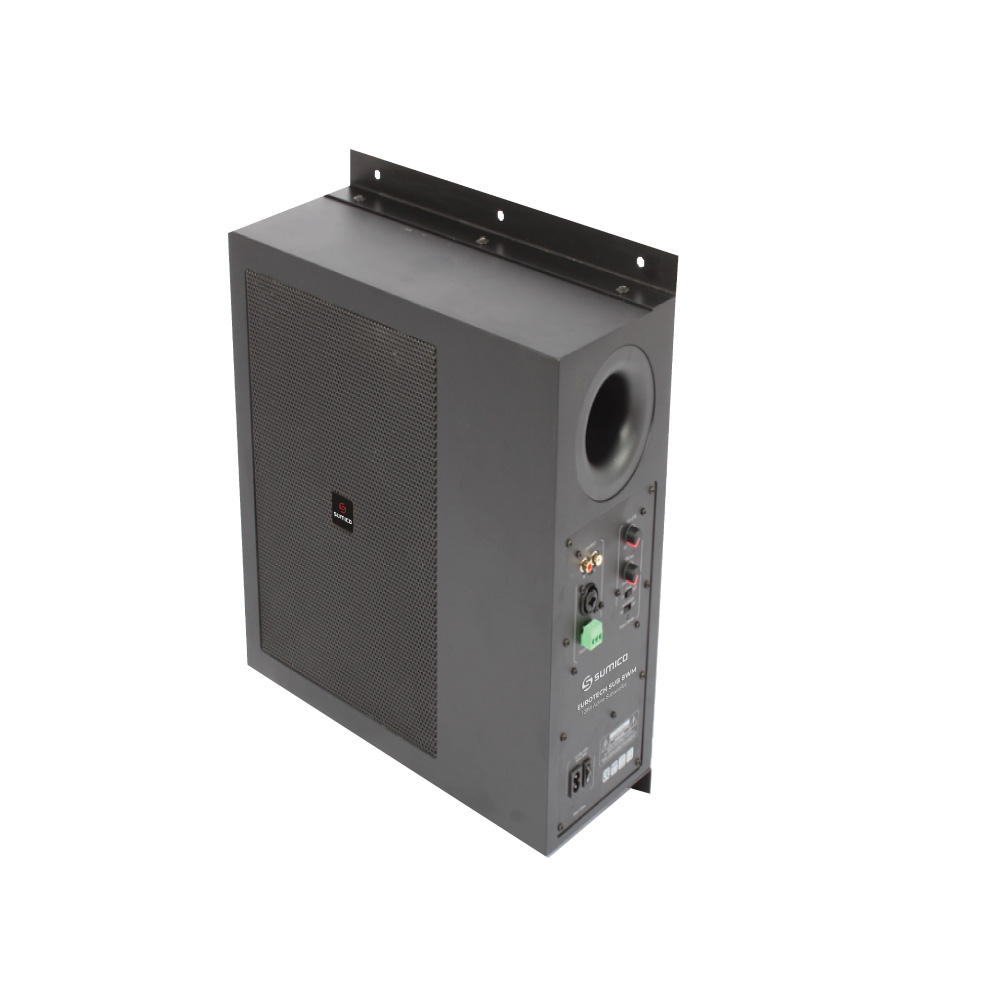

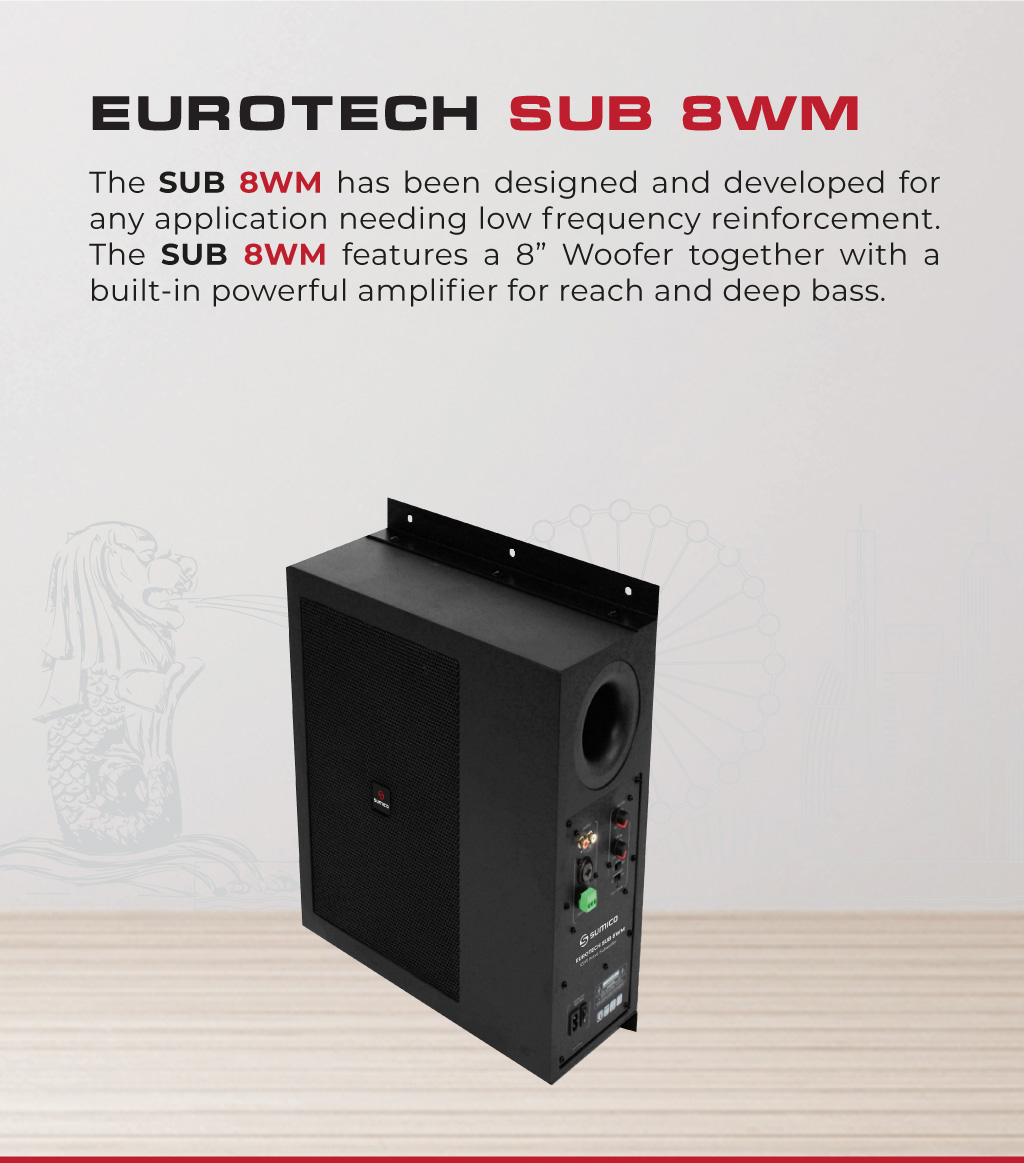

INSTALLATION WALL-MOUNT ACTIVE SUBWOOFER
Compact - Descrete - Self powered
The SUB 8WM has been designed and developed for any application needing low frequency reinforcement. The SUB 8WM features a 8” Woofer together with a built-in powerful amplifier for reach and deep bass.
The SUB 8WM has been designed and developed for any application needing low frequency reinforcement. The SUB 8WM features a 8” Woofer together with a built-in powerful amplifier for reach and deep bass.
All the features expected for such installation speaker are available: X-over frequency, Phase switch, Auto Power( Stand-by), Line input, balanced input with Euroblock connector or XLR connector. Thanks to 2 metal brackets, the SUB-8A can be directly positioned on the wall or fixed on ceiling.
| AMP.POWER | 120W RMS |
| MAX POWER | 240W |
| MAX SPL | 113dB / 119dB (Peak) |
| Dimensions(WxDxH) | 445 x 160 x 400mm |
| Net Weight | 8kg |
| LF Driver | 8" woofer ,1.4" VC |
| Amplifier | CLASS D |
| FREQ RESP | 50Hz-120Hz |
| Low-pass filter | Low-pass filter select switch |
| Functions/Controls | Phase select switch, input level, Low-pass, Stand-by (Auto power) |
| Line In | XLR or 1/4”Jack, RCA, Euroblock BALANCED INPUT |
