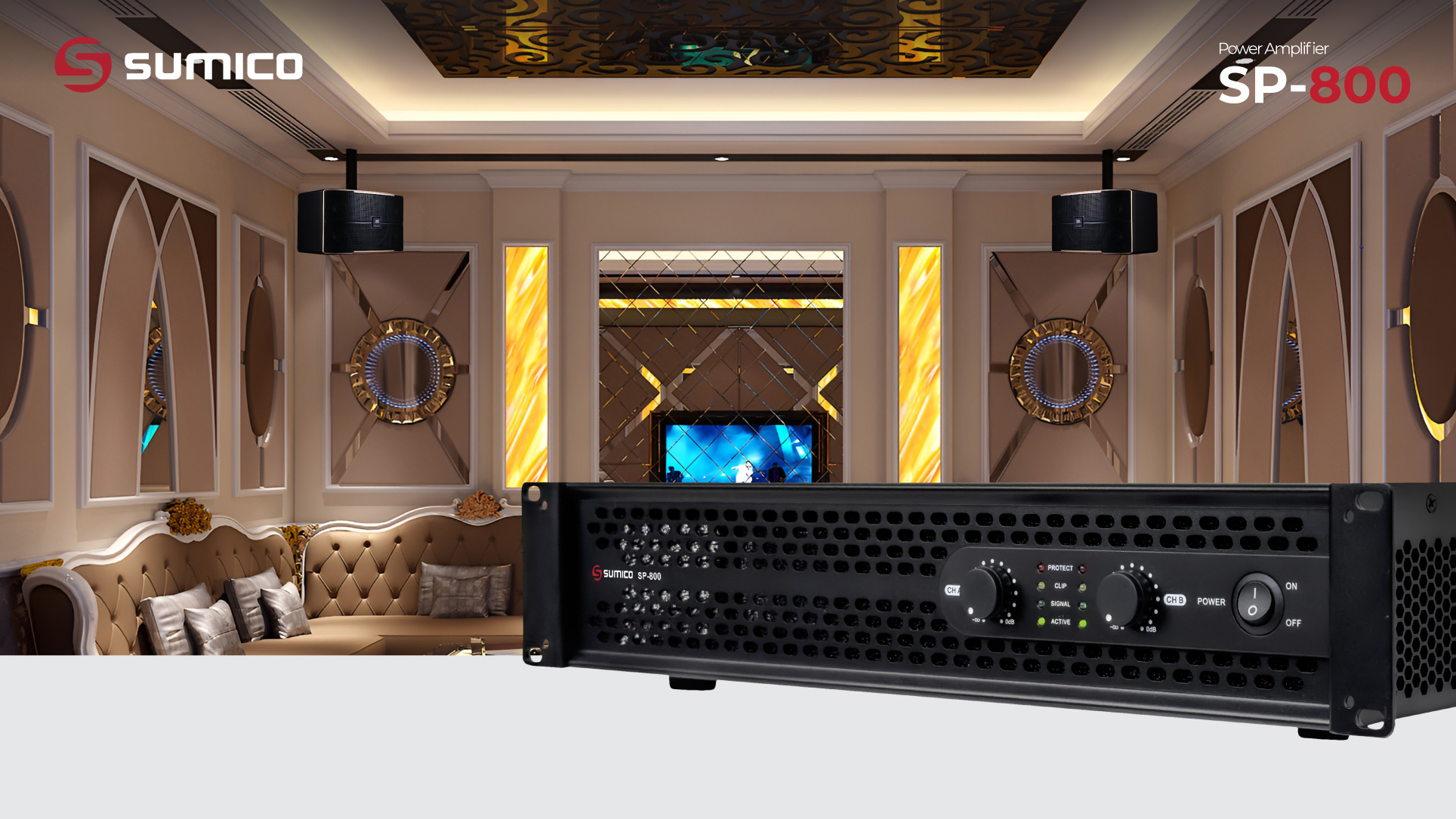

Sumico SP-800 offers versatile compatibility with a wide range of karaoke and professional full-range speakers, ensuring each frequency band is processed with precision and sophistication. It is ideal for setting up high-end karaoke systems.
The Sumico SP-800 is a 2-channel Power Amplifier delivering 800W per channel at 8 Ohms and 1200W per channel at 4 Ohms. It makes an immediate impression with its substantial load capacity, robust sound, and pristine, balanced audio reproduction across the entire frequency range. The Sumico SP-800 Power Amplifier transcends conventional amplification, maximizing the power and sonic characteristics of paired devices such as digital signal processors, karaoke mixers, karaoke speakers, full-range speakers, and stage and auditorium speakers.
Its broad operating frequency range of 20Hz - 20kHz ensures full-spectrum audio output with high clarity and detail. The amplifier's efficient signal conversion and rapid audio frequency response, combined with a low Total Harmonic Distortion (THD) rating, enable the Sumico SP-800 to achieve optimal signal fidelity, resulting in a transparent and pure sound output.

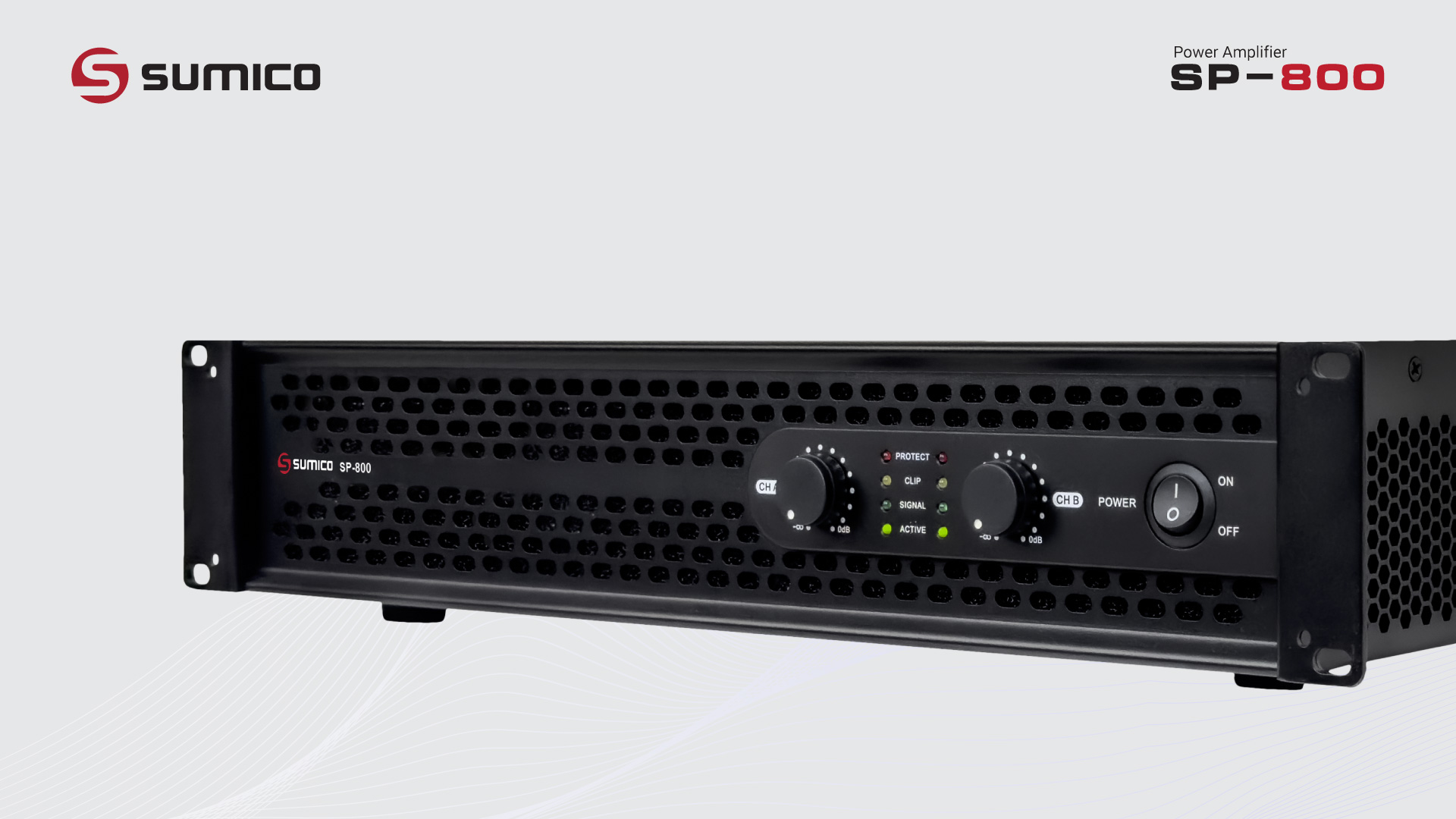

The Sumico SP-800 Power Amplifier features a standard rack-mountable size of 89mm (Height) x 483mm (Width) x 380mm (Depth), allowing for easy integration into audio equipment racks. Its robust chassis, finished in an elegant and powerful matte black, ensures durability. The front panel, crafted from finely machined thick aluminum, showcases a prominent control cluster on the right, including a multi-color signal indicator array, a large rotary knob, and a convenient power on/off switch.
The front panel of the Sumico SP-800 provides clear visual feedback and control, featuring two rotary volume knobs for adjusting the levels of CHA and CHB channels. Each channel includes four signal indicator LEDs, and a power switch, all arranged for intuitive operation. The front grille design not only aids in heat dissipation but also adds a stylish touch to the unit.
The front panel displays PROTECH status for protection circuit activity, SIGNAL indicators for active audio input, CLIP indicators for output signal overload, and an ACTIVE LED for power on/off status.

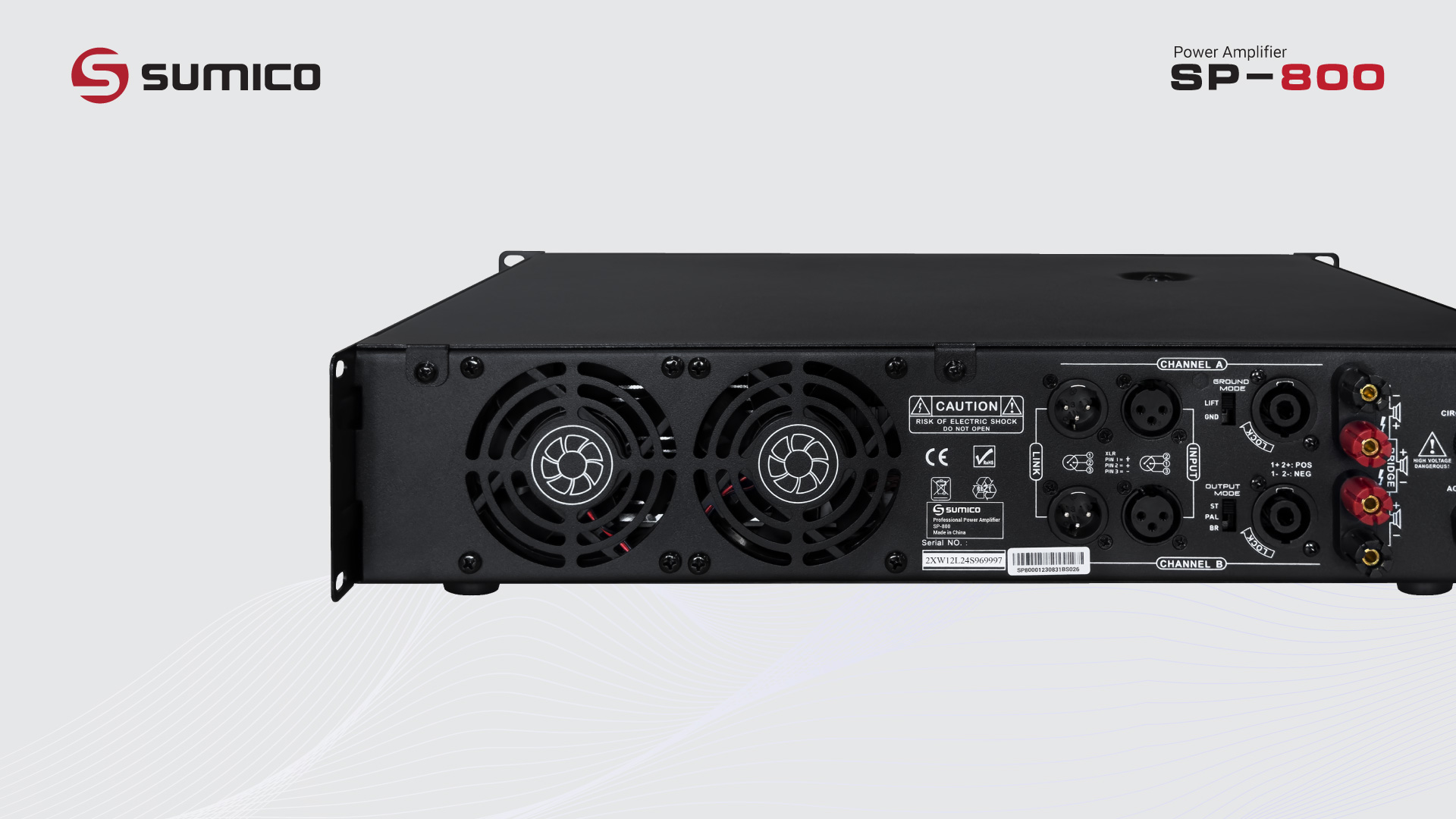

The rear-mounted cooling fan operates quietly, ensuring optimal performance during extended periods of continuous use.

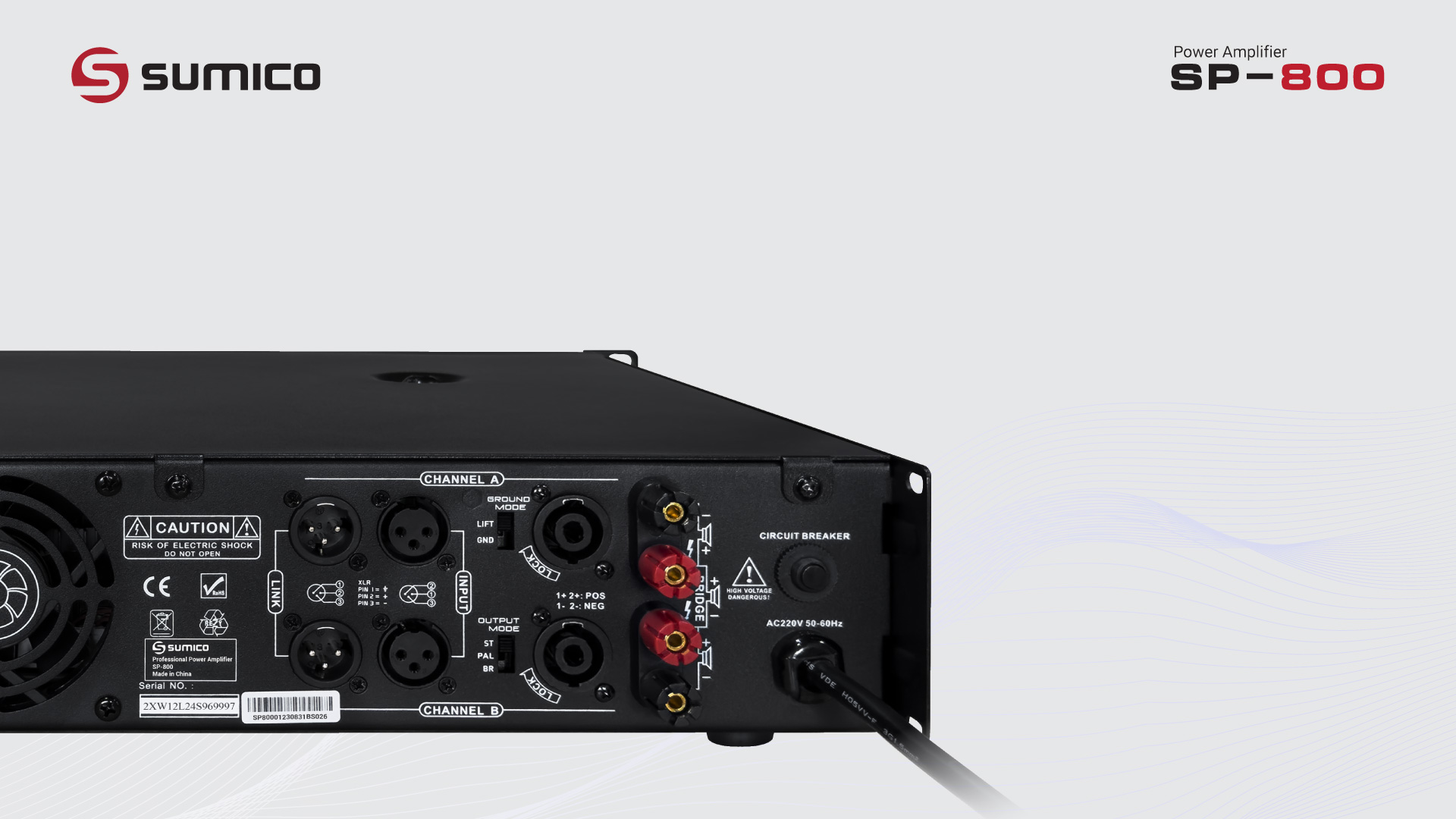

XLR input connectors facilitate seamless connectivity with mixers, digital processors, and other audio sources.
XLR output connectors provide direct signal passthrough from the input.
Output mode selection switch for Parallel (single input driving both outputs), Stereo (separate inputs driving each output), and Bridge (combined output for doubled power in mono).
Flexible speaker output options including binding post terminals, bare wire connections, and Speakon/Canon connectors.
|
Power Output (RMS) |
800W per channel @ 8 Ohms / 1200W per channel @ 4 Ohms |
|
Frequency Response |
20Hz - 20kHz (+0/-1dB) |
|
Total Harmonic Distortion (THD) |
< 0.5%, 20Hz - 20kHz |
|
Signal-to-Noise Ratio (S/N) |
> 100dB |
| Input Sensitivity |
0.775V |
| Damping Factor (8 Ohms), 10Hz – 400Hz |
> 250 |
| Dimensions (H x W x D) |
89 x 483 x 380 mm |
|
Weight |
15 kg |
