WMS4HW

433 USD

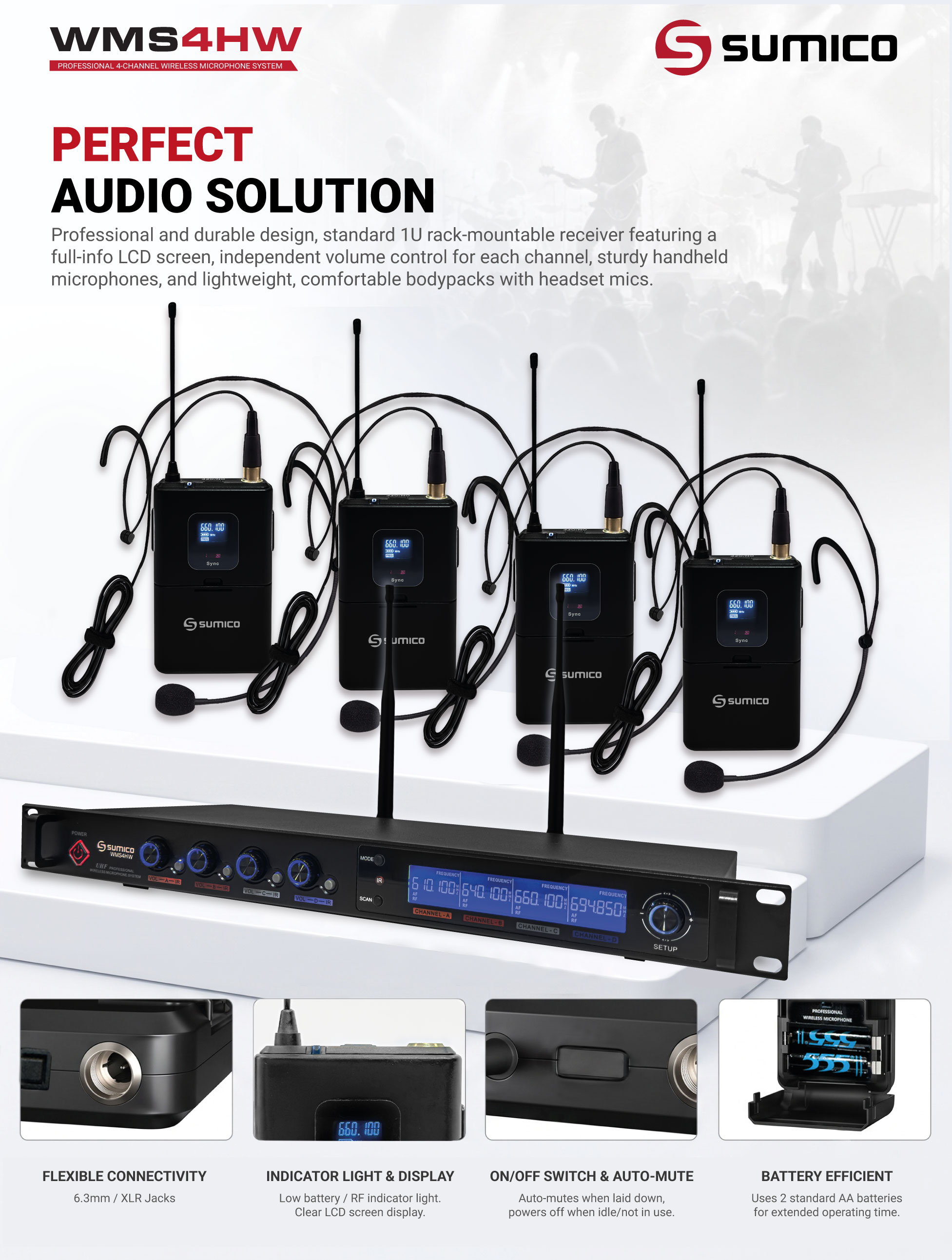

Sumico WMS4HW is a professional 4-channel UHF wireless headworn microphone system that drives four headset transmitters into a single 1U rack-mount central receiver. This all-in-one architecture effectively reduces equipment costs and optimizes installation space, delivering a highly flexible audio solution tailored for public speaking, corporate conferences, live stage performances, and dynamic events.

Description

The Ultimate Hands-Free Wireless Solution

The ergonomic, ultra-lightweight headworn frames are crafted using flexible composite alloy, ensuring a secure yet comfortable fit during extended use. The sleek, low-profile bodypack transmitters feature high-contrast LCD status screens and are powered by standard AA batteries for quick, hassle-free replacement on location. This hands-free design delivers maximum operational freedom and flexibility, allowing presenters, instructors, and performers to stay completely focused on their audience.
Robust UHF Performance and Anti-Feedback Technology

Operating on the professional UHF band (610 MHz – 694 MHz), the Sumico WMS4HW provides robust signal stability, excellent wall-penetration capabilities, and reliable protection against RF interference or dropouts. Equipped with 60 selectable frequency channels and intelligent automatic scanning, the system effortlessly syncs via an infrared (IR) link to find a clean, interference-free wireless frequency, allowing multiple microphone kits to operate simultaneously without signal crosstalk. With a stable wireless operating range of up to 30 meters, presenters and performers can move dynamically across large halls, lecture rooms, and auditorium stages with total confidence. The system is fine-tuned to capture a warm, natural, and pristine vocal profile while delivering highly effective feedback rejection and distortion-free performance.
Tour-Grade Build and Simplified Audio Management

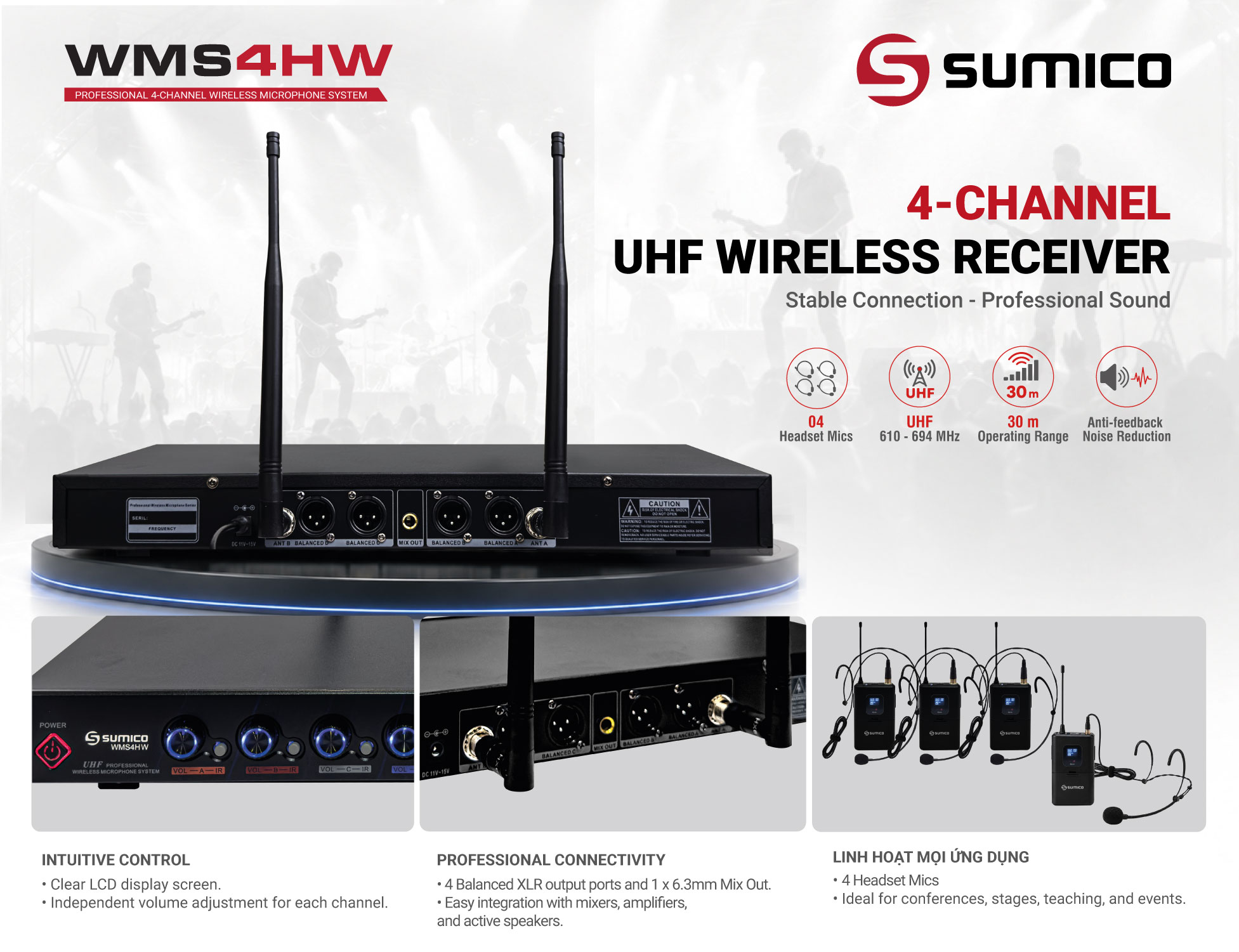

The central 1U rack-mountable chassis houses four completely independent receiver modules, each equipped with its own dedicated hardware volume control and an easy-to-read LCD status display. Instead of managing multiple individual devices, this consolidated architecture significantly reduces cabling complexity and optimizes equipment rack space. For flexible professional backend integration, the rear panel features 4 individual Balanced XLR outputs alongside a 1/4-inch Mix Out interface, guaranteeing plug-and-play compatibility with external front-of-house mixers, public address systems, or active stage loudspeakers.

Benefits

High-Performance 4-Channel UHF Architecture: Drives 4 wireless headworn microphones simultaneously into a single, compact central receiver.
Premium UHF Band Transmission: Operates on the ultra-stable 610 MHz – 694 MHz spectrum for high wall-penetration and dropout-free fidelity.
60 Selectable Smart Channels: Features automatic clean frequency scanning and one-touch IR synchronization to eliminate cross-talk.

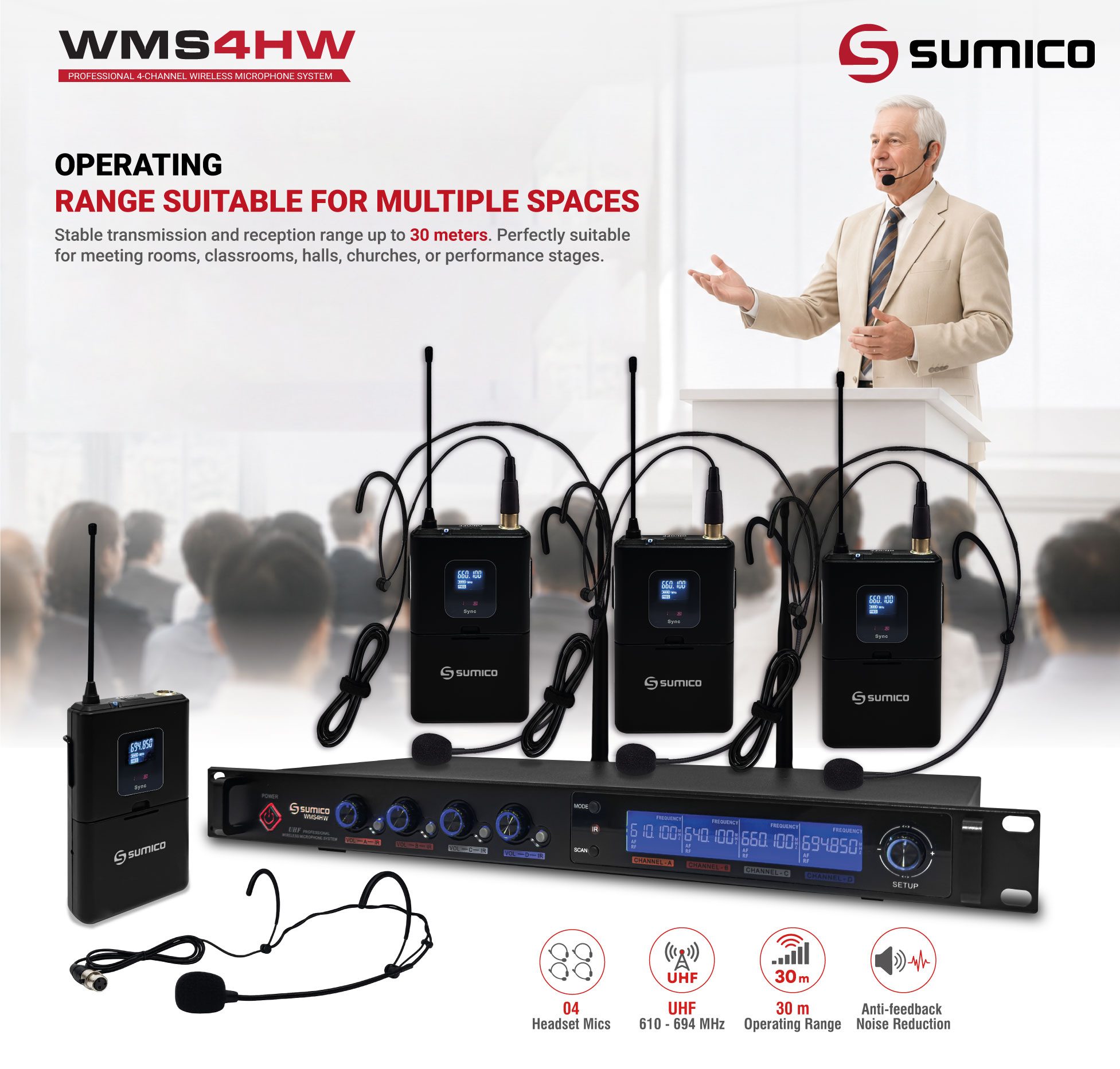

30-Meter Line-of-Sight Range: Delivers wide, reliable wireless coverage tailored for large conference halls, houses of worship, and stages.
Pristine Vocal Tracking & Feedback Control: Offers advanced compression circuitry to isolate vocal intimacy while rejecting background noise and stage feedback.
Ergonomic, Low-Profile Headworn Frames: Engineered with ultra-lightweight, flexible alloys for a secure, discrete fit during dynamic physical movements.
Compact Bodypack Transmitters: Outfitted with clear status LCDs, signal indicators, and runtime tracking fueled by highly accessible AA batteries.
Tour-Grade 1U Rack-Mount Metal Receiver: Rugged alloy build optimized for integration into standardized commercial system equipment racks.
Independent Multi-Channel Management: Provides independent hardware gain knobs per channel to let audio technicians tailor levels easily.
Flexible Audio Routing Architecture: Deploys 4 discrete Balanced XLR channel outputs combined with a 6.35mm Mix Out terminal.
Multi-Scenario Commercial Application: Perfectly suited for presenters, fitness coaches, theatrical performers, houses of worship, and live streaming rigs.

Specifications

RF Frequency Range	610 MHz – 694 MHz
Total Channels	60
Wireless Operating Range	30 meters
Display Interface	LCD
Output Interfaces	4 x XLR, 1 x 6.3mm
Power Supply	AC 100V-240V (50-60Hz), 11V - 15V DC
Battery Type	2 x AA Alkaline Batteries
