X12

601 USD

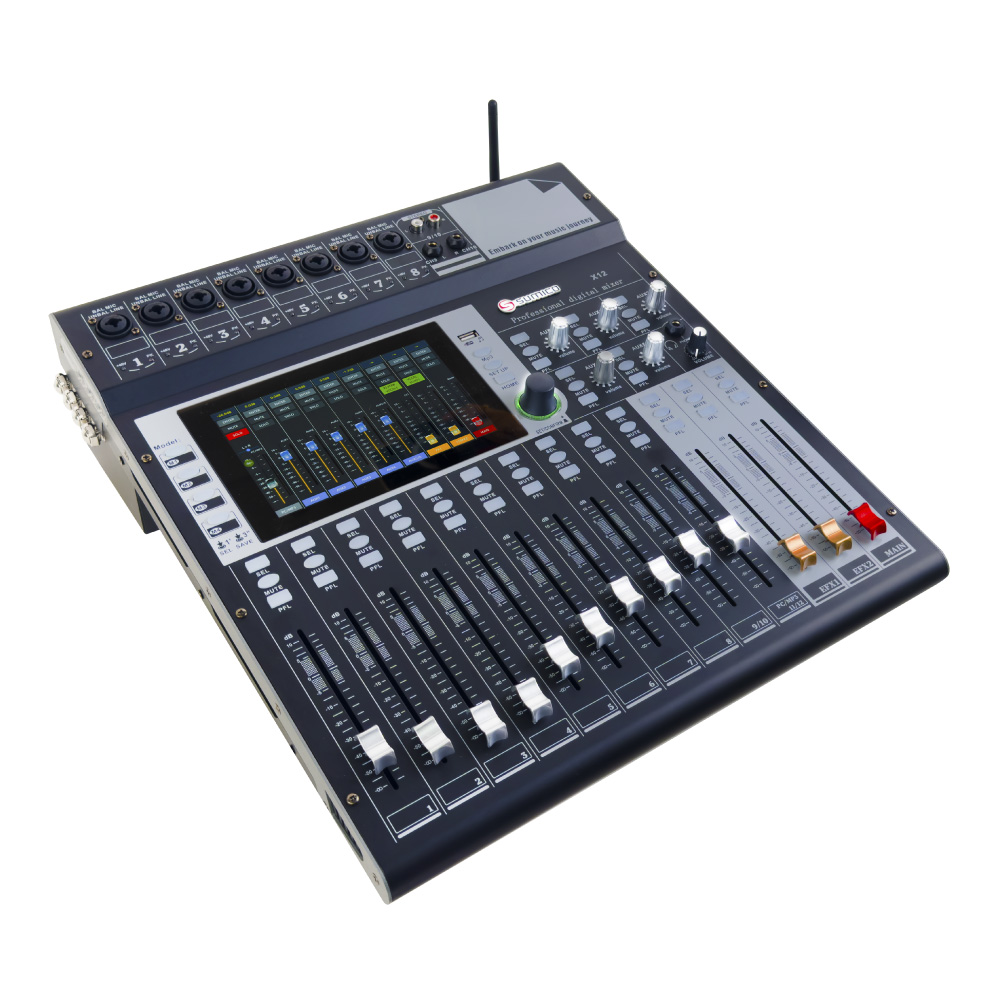

The Sumico X12 Digital Mixer supports 12 input channels and 10 output channels, offering 16 user-configurable effect modes with setup and backup functions.

/uploads/1761368125X12_Web12.jpg
/uploads/1761293886X12_Web6.jpg
/uploads/1761293886X12_Web9.jpg

Description

Equipped with 12 input channels (8 mono inputs, 2 stereo inputs, and 2 digital inputs with USB/Bluetooth and Optical), the Sumico X12 Digital Mixer is well-suited for small bands, outdoor events, premium karaoke rooms, or medium-sized churches. Users can easily connect microphones, musical instruments, music players, and other audio devices, with each channel offering independent customization through the integrated digital interface and DSP signal processor, ensuring minimized noise and delivering exceptionally detailed and true-to-life sound.

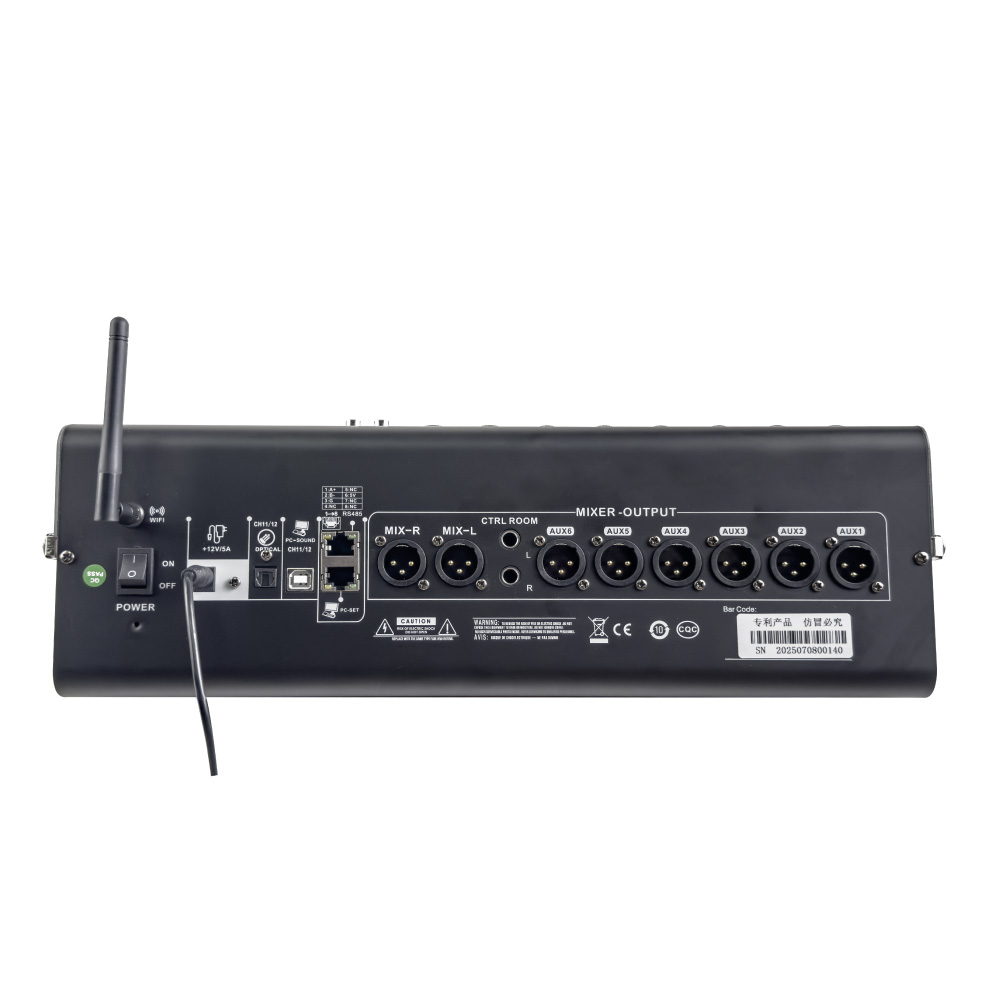

The Sumico X12 Digital Mixer supports a wide range of audio connection port formats, including XLR, 6.3mm, RCA, Optical, and USB ports for music playback and recording, compatible with formats such as MP3 and WAV. This provides flexible support for music playback, recording, or connecting with live-streaming systems. The Sumico X12 Mixer features 6 mono AUX outputs, 2 stereo output channels (Main Out and CTRL Room/Monitor Out), and 2 Digital output channels (USB soundcard and USB REC), enabling flexible conditions for sound monitoring (monitor), signal distribution to external speakers (e.g., additional subwoofers or delay lines), or recording systems, Wi-Fi connection antenna and Ethernet port for remote control via smartphone, tablet, or computer.

Benefits

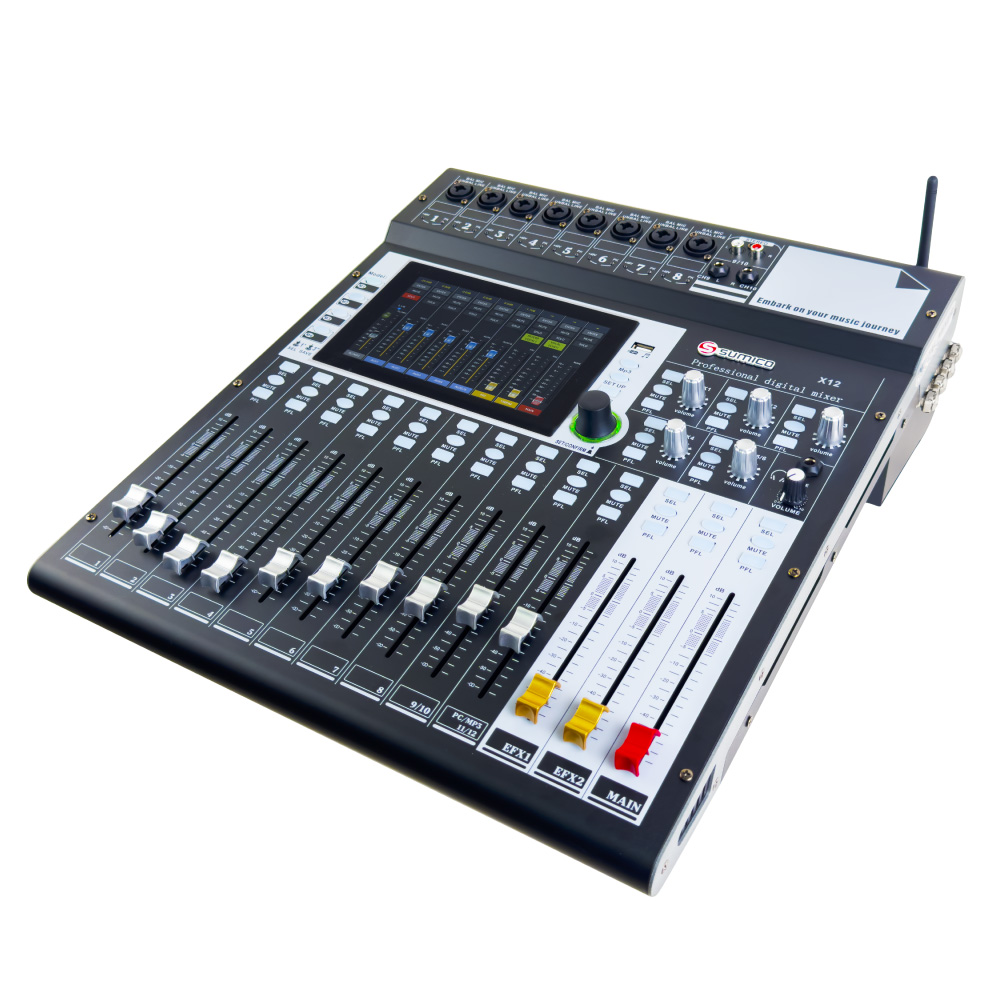

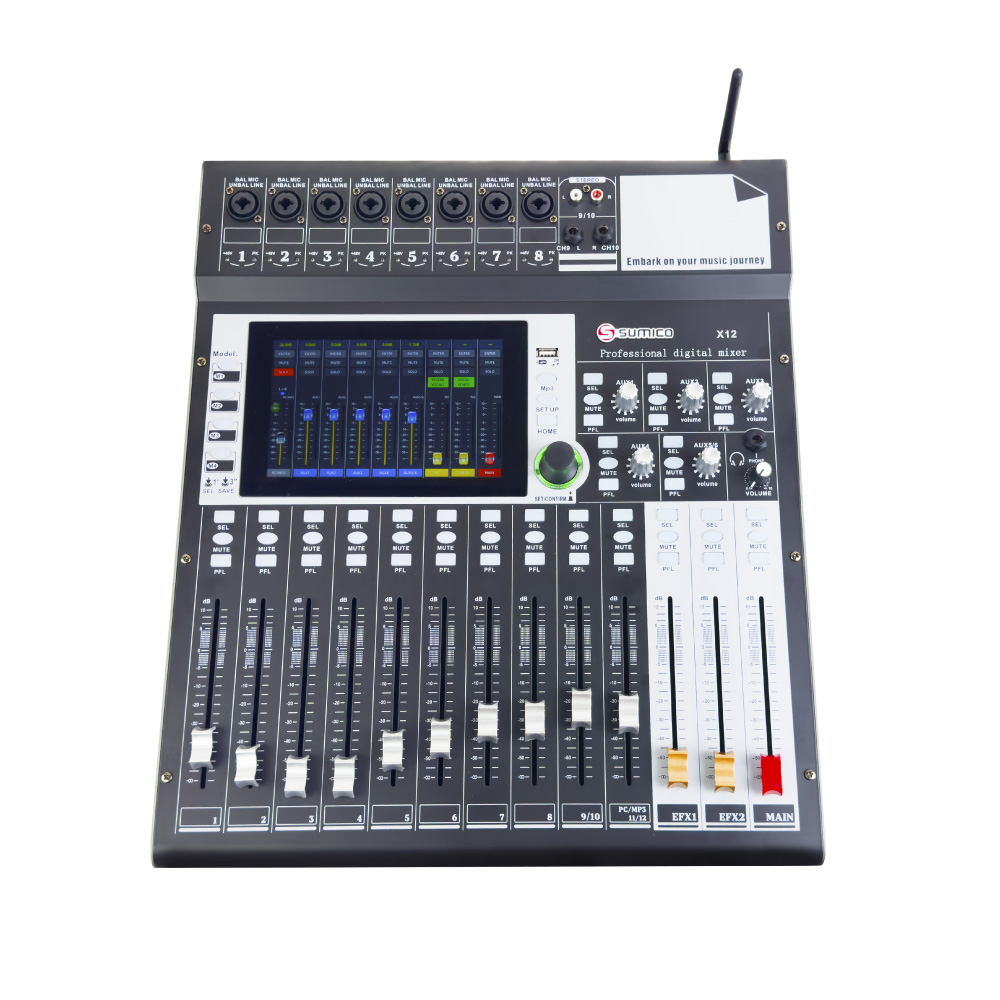

The Sumico X12 Digital Mixer stands out with its modern and user-friendly design. Although it is a digital mixer, the Sumico X12 retains a fader lever and adjustment buttons like a traditional analog mixer, allowing easy operation and flexible control. A key highlight of the Sumico X12 Digital Mixer is its 7-inch full-color touch screen, which enables users to manage the entire system by simply touching the EQ, compressor, reverb, delay, and other effects directly on the mixer without requiring additional external devices. The digital interface is scientifically designed and streamlined, making it easily accessible even for users without in-depth audio expertise.

In particular, the Sumico X12 Mixer allows users to store and recall up to 16 effect modes (effect modes - preconfigured audio effect settings that can be saved as automatic program presets). This feature significantly saves time in recurring events or when quick switching between multiple users is required—an essential capability in environments such as live performances, karaoke venues, or churches, where systems are often shared or operated on a regular schedule.

The Sumico X12 Mixer integrates a next-generation Digital Signal Processing (DSP) engine, enabling simultaneous processing of multiple effects without latency or loss of signal quality. Users can apply spatial effects such as hall, plate, and echo either to individual channels or across the entire mix bus, enhancing depth and nuance in every performance.

One of the standout features of the Sumico X12 Mixer is its remote control ability via a web browser interface on smartphones and tablets (iOS, iPadOS, and Android) or laptops (Windows and macOS). This can be achieved either via the mixer’s Wi-Fi broadcast address or by linking the mixer to a computer via Ethernet cable. The Wi-Fi connection provides the advantage of fast and flexible system setup, making it especially useful for mobile sound crews and temporary stage setups.

/uploads/1761367757X12_Web10.jpg

Specifications


Dynamic Range -107dB
Crosstalk CH isolation (+4dBulk):-96dB
Phase Difference Phase (+4dBu 1k):<0.1°
Equivalent Noise -122dBu
Delay <3ms
Sampling Rate 24bit/48kHz
USB Maximum: 500mA
Phantom Power Supply +48V Digital control
Consumption <60W(Classic value)
Voltage 100~240V ACIM; AC frequency:47~63Hz
Operating Temperature Range -20°C to 55°C
Dimensions (W x H x D) 394 x 125 x 450mm
Weight 6Kg
12 input channels  8 x  XLR/6.3mm mono input, 2 CHs stereo input, 2 CHs
digital input (USB/Bluetooth, USB soundcard/ Optical in)
1 x Stereo RCA input, 1 x Stereo 6.3mm
1 x USB/Bluetooth, USB Soundcard, Optical
10 ouput channels 6 x AUX Output
1 x Stereo L/R XLR
1 x Stereo L/R 6.3mm, 1 x Phones L/R 6.3mm
2 x Digital Output ( USB Soundcard, USB REC)
Stereo Recording USB Stereo soundcard, Stereo channel record
Input Level Mic Gain range-20~+70dB; Line Gain range-20~+20
Input & Output Impedance Mic/Line: 5kΩ; Output: 2000
Frequency Response Range 20Hz~20kHz:+/-0.5
THD IN -20dBFS @ 1kHz:<0.01%
Signal-to-Noise Ratio (S/N) Noise level (20/20k bandpass):-84dBu;
