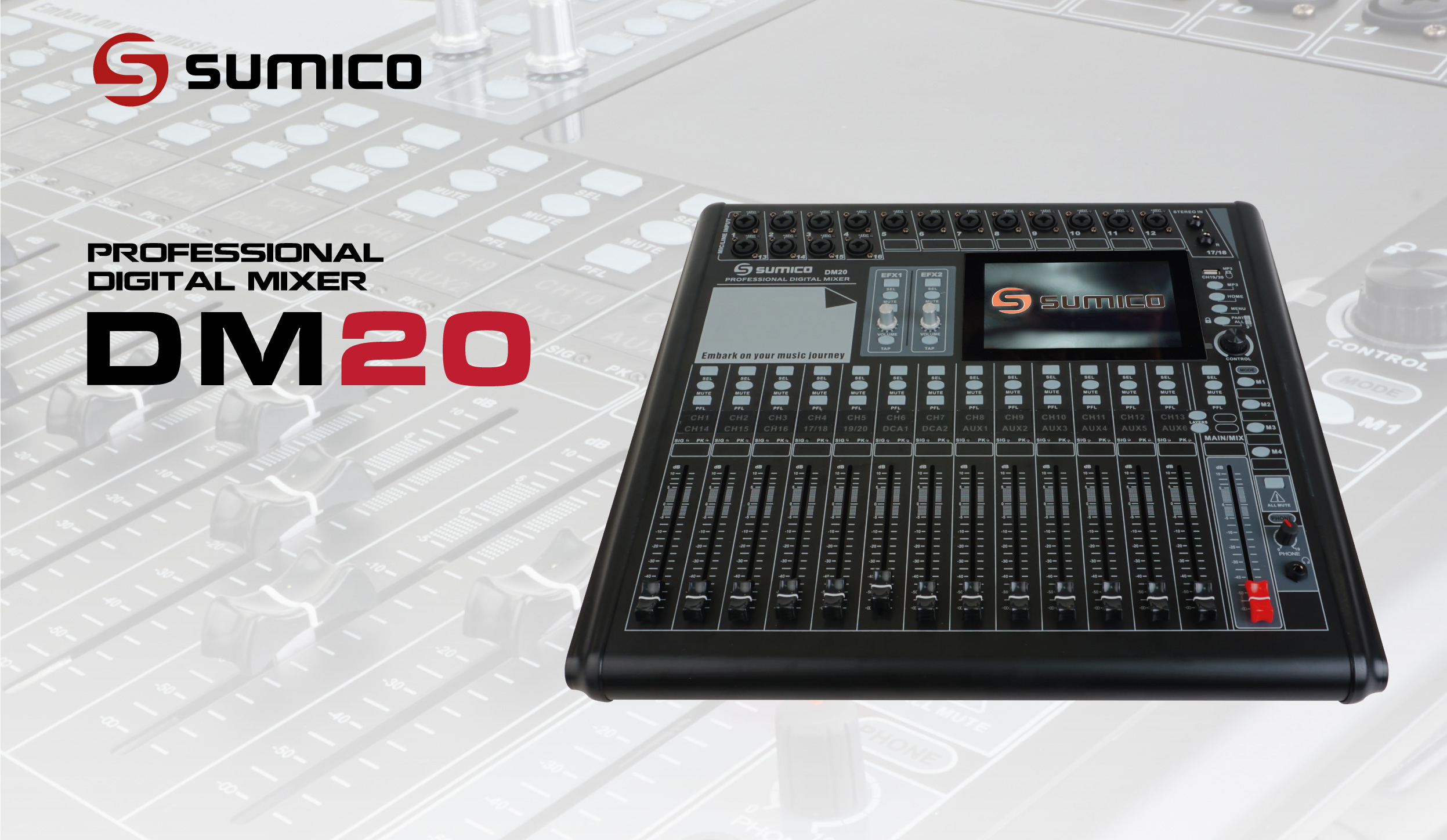

DM20

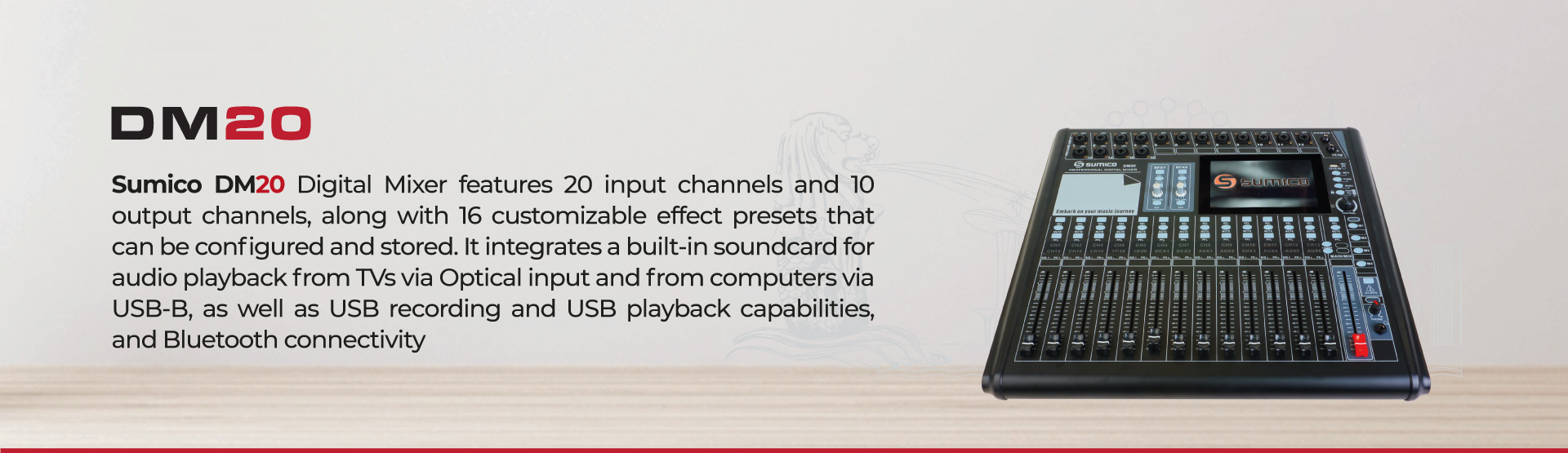

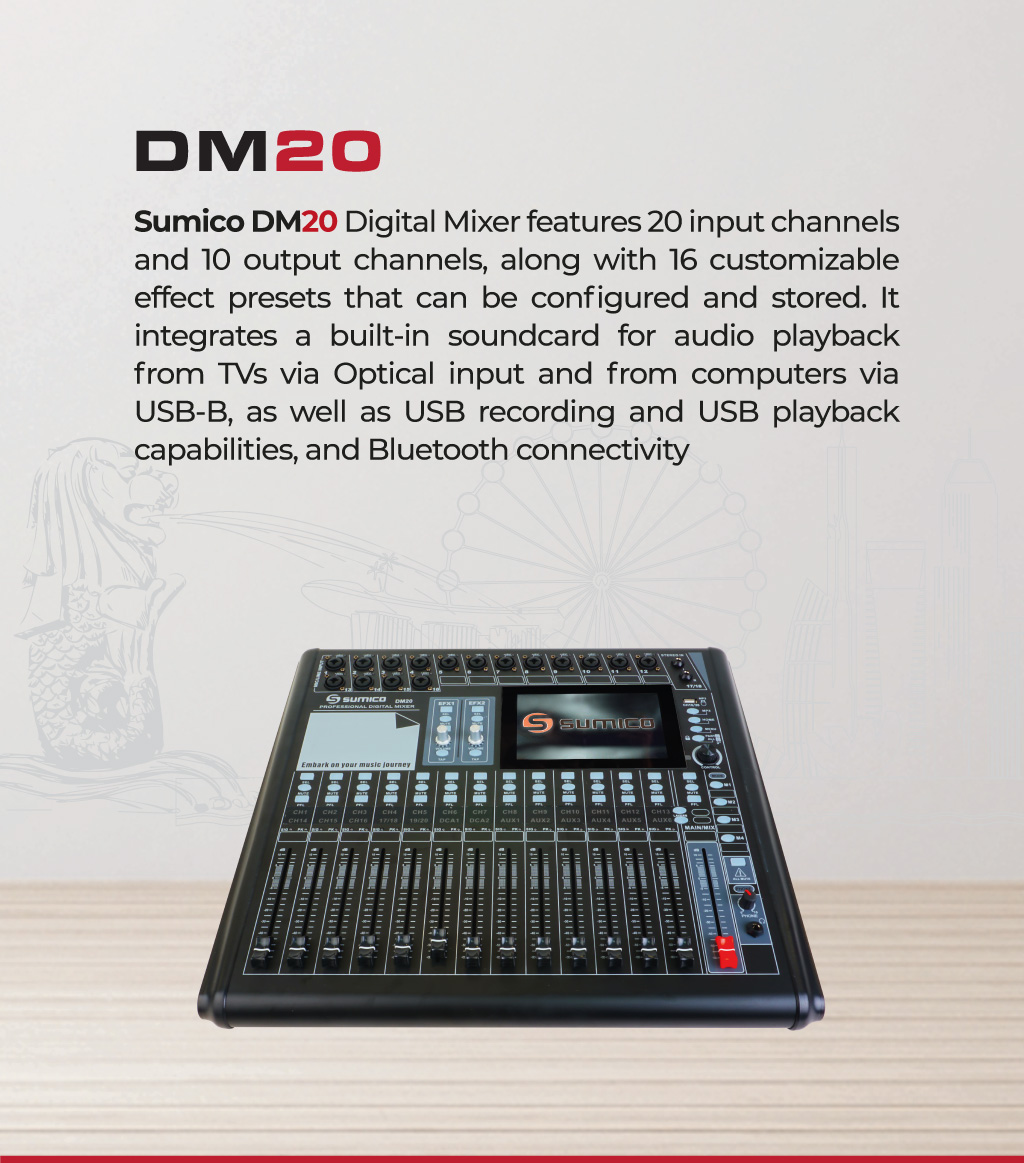

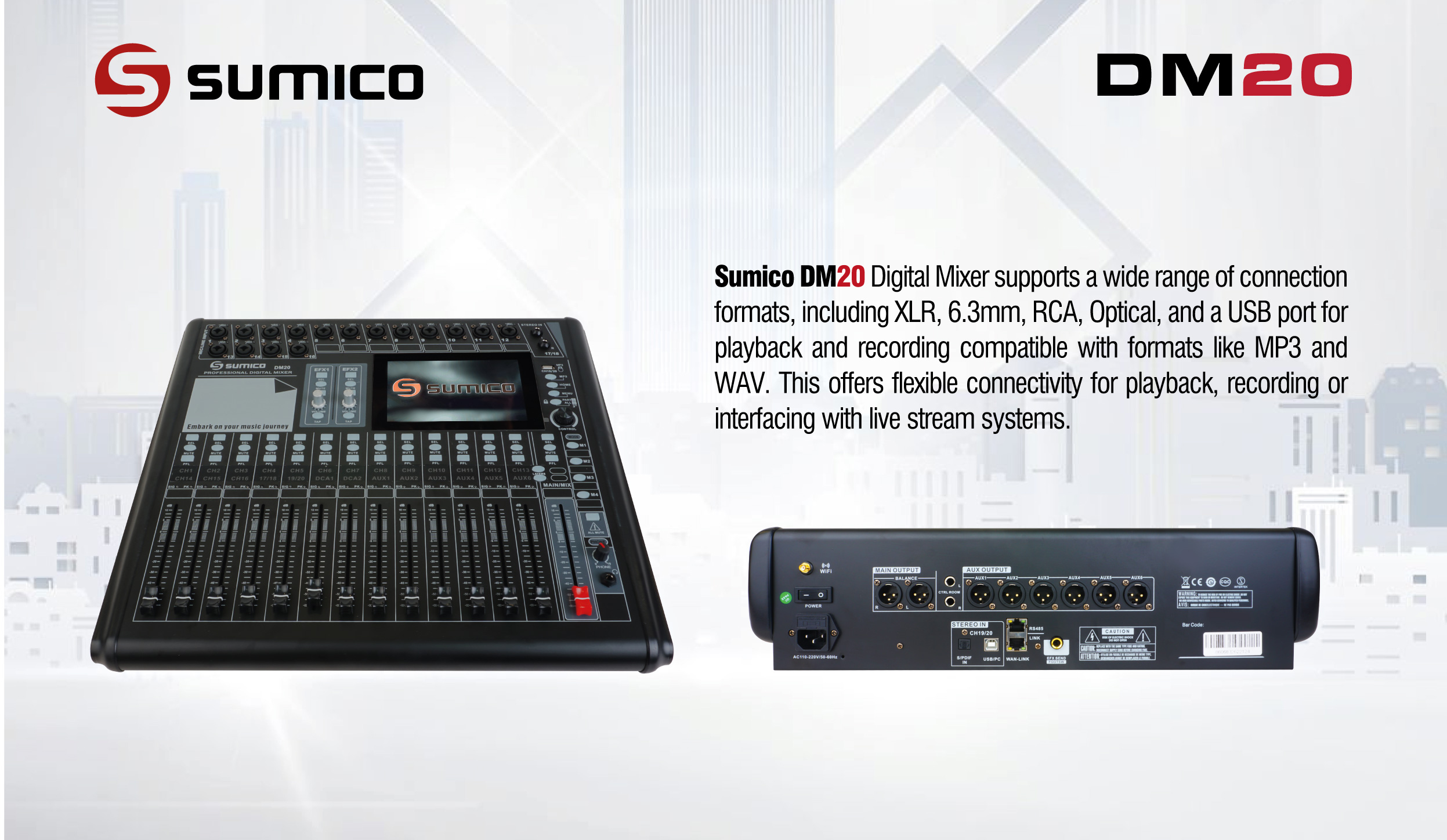

The Sumico DM20 Digital Mixer supports a wide range of connection formats, including XLR, 6.3mm, RCA, Optical, and a USB port for playback and recording compatible with formats like MP3 and WAV. This offers flexible connectivity for playback, recording, or interfacing with live stream systems. The Sumico DM20 features 6 Mono AUX Outputs, 2 Stereo Outputs (Main Out and CTLR Room/Monitor Out), and 2 Digital Outputs (USB soundcard, USB REC). This flexible routing facilitates monitoring, signal splitting for external speakers (subwoofers, delay lines), or recording systems. The mixer includes a Wi-Fi antenna and an Ethernet port for wired remote control via Smartphone, Tablet, and PC.

Intelligent Auto Fader and DCA Group

The Sumico DM20 Digital Mixer boasts two prominent key features: Auto Fader and DCA Group.

Auto Fader automatically adjusts the volume level of signal channels based on pre-set parameters for the fader position, saving time, reducing technical errors in live performance, and increasing precision during detailed mixing.

The DCA Group feature allows the creation of 3 groups to adjust the volume level simultaneously for multiple signal channels within one group (e.g., drum group channels 1-6, instrument group channels 7-10, vocal group channels 11-14) using only one single fader, without altering the internal settings of each individual channel. Users can control the entire drum kit, backing instruments, or vocals with one fader, or quickly Mute the entire channel group (e.g., muting all stage microphones) without affecting the gain, EQ, or effects of individual channels. The DCA Group feature speeds up mixing and increases precision in live performance environments or events with multiple inputs, enhancing safety and preventing accidental adjustment of individual channel faders.

Pre-set Effect Modes (Scenes)

Significantly, the Sumico DM20 allows saving and recalling 16 effect modes (pre-set audio effect configurations established as automatic program setups). This saves time in repetitive programs or when quick switching between multiple users is required—a crucial feature in performance, karaoke, or house of worship environments that host multiple users or regular performance schedules.

Powerful DSP Processing System

The Sumico DM20 integrates a new-generation Digital Signal Processing (DSP) unit, enabling simultaneous processing of multiple effects without latency or signal degradation. Users can apply spatial effects like hall, plate, echo to individual channels or the entire mix bus, adding depth and nuance to the performance.

Wireless Remote Control Connectivity

One of the great features of the Sumico DM20 is its ability to be remotely controlled via a browser on Smartphone and Tablet screens (iOS, iPadOS, and Android) or Laptops (Windows and MacOS). This is achieved by connecting via Wi-Fi / the mixer’s broadcasting address or by connecting the mixer to a computer via an Ethernet cable. The Wi-Fi connectivity advantage allows for quick system setup, especially useful for mobile sound crews or temporary stages.

Diverse Practical Applications

The Sumico DM20 Digital Mixer is an ideal solution for:

• Outdoor stage sound systems, auditoriums, and medium-scale events.
• Live bands performing with multiple instruments.
• High-end commercial karaoke rooms requiring independent sound processing for multiple microphones and music sources.
• Small and medium events: weddings, outdoor stages, conferences, lecture halls.
• Houses of worship, lecture halls, or convention centers requiring flexible audio adjustment.

The Sumico Digital Mixer DM20 demonstrates meticulousness in both design and functionality. With its accessible price point, powerful DSP processing capabilities, touchscreen control, remote control support, and scene recall functionality, the Sumico DM20 is the perfect combination of a professional mixer and smart consumer audio equipment. It is particularly suitable for prosumers, mobile stage technicians, and karaoke rooms demanding superior sound quality, making it an ideal choice for anyone seeking an effective, user-friendly, and flexible digital mixer in any audio environment.
